P2 Flexible Led display with module of 240x120mm for archiving irregular shape display
P2 Flexible Led display description

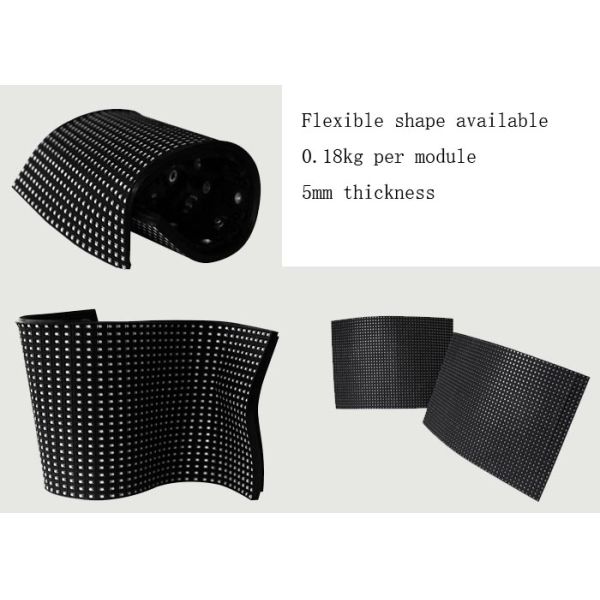

Module can be bent, can be used for the surface of the arc place, that can be inward arc, but also can be outward the arc, use of flexible.
flexible led screen adopt magnet pole directly adsorbed on the cabinet, It can be front and back maintenance, greatly facilitate the installation.
P2 Flexible Led display Parameters:
| | BS-2 |
| Physicla Pitch | 2mm |
| Pixel Configuration | SMD 1515 |
| Pixel Density | 250,000 pixels/m² |
| Module Dimensions (W*H)(mm) | 240*120 |
| Panel Dimensions (mm) | customized |
| Physical Resoulution of Modules (W*H) | 120*60 |
| Weight | 8.2 kg/m² |
| Gray Scale | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000:1 |
| Average Power Consumption | 9 W |
| Max Power Consumption | 12 W |
| Brightness | >1,000 nits |
| Refresh Rate | >1,920 Hz |
| Scan Method | 1/40 |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | 100,000Hrs |
| Srevicing | Front |
| IP Rating (Front/Rear) | IP 40 |
| Operating Temp/Humidity | -20ºC-60ºC/10%-90% |
| Storage Temp/Humidity | -40ºC-80ºC/10%-90% |
P2 Flexible Led display Features:
1. Durable soft rubber module,anti-static electricity
2. Integrated SMD,IC,Circuit for easy maintenance and heat dissipation
3. For any convex,concave or twisted installtions
4. Customized pixel oitches available for variable installations
5. Magnetic connection for easy installation and maintenance
Why choose us?
Cases:
Company:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005,a world class manufacturer of technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
Exhibition:
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 7-10 days, mass production time needs 4-5 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
