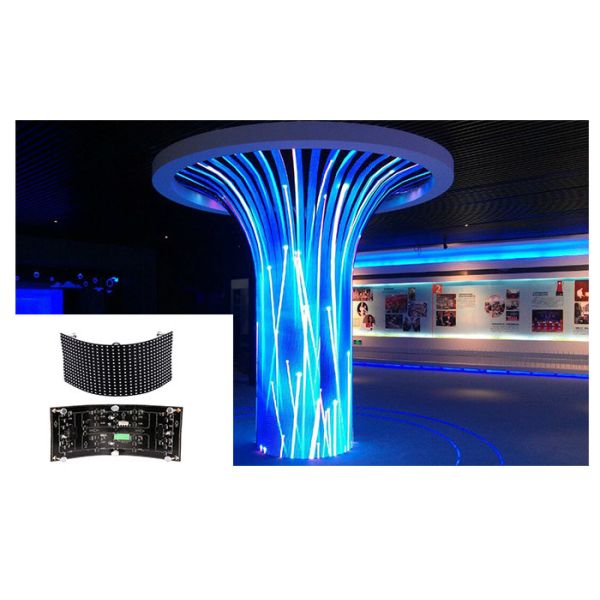

Light Weight P4 Flexible Led Display with Module of 240x120mm
P4 Flexible Led Display Description
● Convex,concave or twisted available module
● For any creative shape and size, for unique installation
● Slim and Lightweight
● Magnetic connection for easy maintenance
P4 Flexible Led Display Parameters:
| Pixel Pitch | P2 | P2.5 | P3 | P4 |
| LED Type | SMD1515 | SMD2121 | SMD2121 | SMD2121 |
| Module Size | 240*120 |
| Module Resolution | 120*60 | 96*48 | 80*40 | 60*30 |
| Cabinet Weight | 8.2kg/sqm |
| Pixel Density | 250,000 pixels/sqm | 160,000 pixels/sqm | 111,111 pixels/sqm | 62,500 pixels/sqm |
| Gray Scale | 16bit |
| Contrast Ratio | 4000:1 |
| Brightness | ＞1000 nits |
| Driving Method | 1/40 | 1/40 | 1/40 | 1/8 |
| Refresh Rate | ＞1920Hz |
| IP Rating | IP40 |
| Average Power Consumption(W/sqm) | 9w/sqm | 9w/sqm | 10w/sqm | 10w/sqm |
| Maximum Power Consumption(W/Sqm) | 12w/sqm | 12w/sqm | 13w/sqm | 13w/sqm |
| Servicing | Front |
| IP Rating | IP40 |
P4 Flexible Led Display Features:
Cases:
Company Introduction:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005,a world class manufacturer of
technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
FAQ
Q1:How to choose a proper led screen for your need?
A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?
Q2:Which pixel pitch should i choose?
A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
Q3:Which control system should i choose?
A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
Q4:How to pay?
A:We accept L/C, T/T bank, or paypal or westerunion.
Q5:How to ship?
A:It is optional and we respect customer's choice. You can choose to ship by air cargo, by internation express company, or by sea according to your goods weight and volume and the delivery time you need.
Q6:How to install it after i received it?
A:We will offer you the drawing to guide you for installation, we could also offer steel drawing, software set up drawing or photo or send our engineer fly to you for help if needed.
