Tile Construction
●SLIM CONSTRUCTION
Smaller modules make creative displays more obtainable.
●CUSTOMIZED TILES
BR series come in standard sizes and can also be customized or trimmed to create angled tiles to meet the need of more creative LED video designs.
Unsurpassed Color Uniformity
● Unique color calibration process
● Deep black levels, contrast ratio 4000:1
● Low bright and high gray scale, good consistency
TECHNICAL SPECIFICATIONS
2mm 250,000/m² >1000nit IP40
Pitch Density Brightness Weather Rating
281trillion 8.2kg/m² m 16bit 9/12w
Colors Weight Gray Scale Power Avg/Max
Soft LED Module Parameters
| | BS-2 | BS-2X | BS-3 | BS-4 |
| Physicla Pitch | 2mm | 2.5 mm | 3 mm | 4 mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 | SMD 2121 |
| Pixel Density | 250,000 pixels/m² | 160,000 pixels/m² | 111,111 pixels/m² | 62,500 pixels/m² |
| Module Dimensions (W*H)(mm) | 240*120 | 240*120 | 240*120 | 240*120 |
| Panel Dimensions (mm) | customized | customized | customized | customized |
| Physical Resoulution of Modules (W*H) | 120*60 | 96*48 | 80*40 | 60*30 |
| Weight | 8.2 kg/m² | 8.2 kg/m² | 8.2 kg/m² | 8.2 kg/m² |
| Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption | 9 W | 9 W | 10 W | 10 W |
| Max Power Consumption | 12 W | 12 W | 13 W | 13 W |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,500 nits |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Scan Method | 1/40 | 1/40 | 1/40 | 1/8 |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| Srevicing | Front | Front | Front | Front |
| IP Rating (Front/Rear) | IP 40 | IP 40 | IP 40 | IP 40 |
| Operating Temp/Humidity | -20ºC-60ºC/10%-90% | -20ºC-60ºC/10%-90% | -20ºC-60ºC/10%-90% | -20ºC-60ºC/10%-90% |
| Storage Temp/Humidity | -40ºC-80ºC/10%-90% | -40ºC-80ºC/10%-90% | -40ºC-80ºC/10%-90% | -40ºC-80ºC/10%-90% |

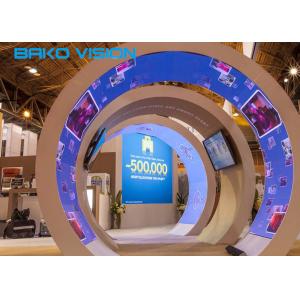

Flexible LED Screen Cases
After-sales Service
We offer 2 year warranty for our different led display screen series, 100,000 hours life span for the led lamps, and lifetime technology support with 7/24 phone answering service if you have any problem with our led screen.
