P3 Indoor Flexible LED Dislpay Screen 5mm Thickness Full Color Soft Module
Description:
1. The soft LED display panel is made of soft rubber, which make the panel with high flexibility, can be assembled freely and has the ability to be bend and cured without any LED lamps are damaged.
2. The weight of soft LED display panel is only 8.2kg/sqm and the thickness of LED panel is only 5mm, super thin and super light for easy transport and carriage.In the meantime, it also save you labor, time and cost greatly.
3. Soft LED display panel adopts strong magnets embedded arround the panel, this feature of high magnetic to make the soft LED screen panel can be attached on the metal cabinet and help them keep their shape.
4. soft LED display panel use high quality LED and driver IC to make the LED display with feature of high refresh rate, high definition and high contrast. The display color is clear, uniformity and vivid.

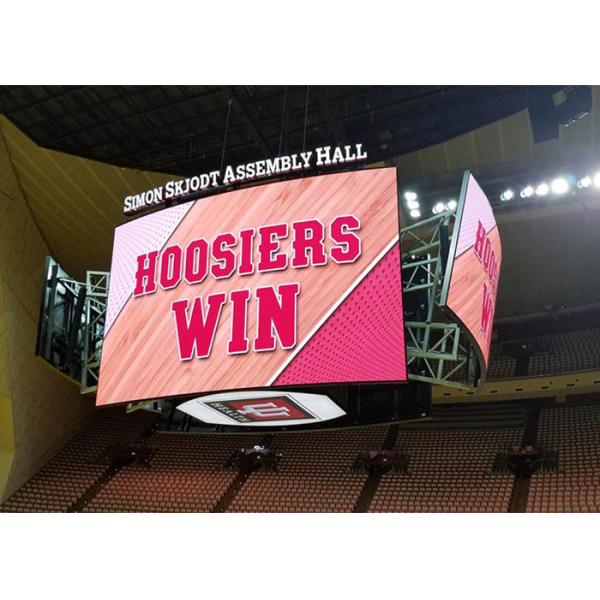

5. Widely used for stage show, rental, night club. Bars etc.
Parameters:
| Physicla Pitch | 2mm | 3 mm | 4 mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 |
| Pixel Density | 250,000 pixels/m² | 111,111 pixels/m² | 62,500 pixels/m² |
| Module Dimensions (W*H)(mm) | 240*120 | 240*120 | 240*120 |
| Panel Dimensions (mm) | customized | customized | customized |
| Physical Resoulution of Modules (W*H) | 120*60 | 80*40 | 60*30 |
| Weight | 8.2 kg/m² | 8.2 kg/m² | 8.2 kg/m² |
| Gray Scale | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption | 9 W | 10 W | 10 W |
| Max Power Consumption | 12 W | 13 W | 13 W |
| Brightness | >1,000 nits | >1,000 nits | >1,500 nits |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Scan Method | 1/40 | 1/40 | 1/8 |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000Hrs |
| Srevicing | Front | Front | Front |
| IP Rating (Front/Rear) | IP 40 | IP 40 | IP 40 |
| Operating Temp/Humidity | -20ºC-60ºC/10%-90% | -20ºC-60ºC/10%-90% | -20ºC-60ºC/10%-90% |
| Storage Temp/Humidity | -40ºC-80ºC/10%-90% | -40ºC-80ºC/10%-90% | -40ºC-80ºC/10%-90% |
Cases:
Company Vision: Professional Team Focus on Professional Work, that is how to build BAKOVISION brand.
Company Mission: Offer professional solution to professional customers, create value for customers.
Company Spirit: Focus Efficiency Sincerity Innovation.
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional LED screen manufacturer,specialize in this industry for more than ten years.
Q2. Do you provide samples?is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-5 years warranty to our products.
